Abstract base class that encapsulates functionality of a module; used with the Module-Core paradigm. More...

#include <synthbase.h>

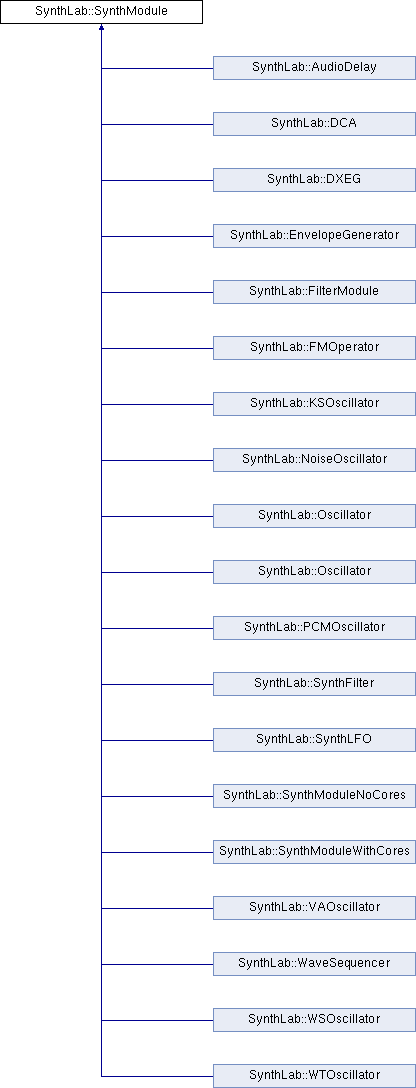

Inheritance diagram for SynthLab::SynthModule:

Public Member Functions
	SynthModule (std::shared_ptr< MidiInputData > _midiInputData)
	Constructs a SynthModule. More...

virtual	~SynthModule ()
	Removes cores, if any.

virtual bool	reset (double _sampleRate)=0

virtual bool	update ()=0

virtual bool	render (uint32_t samplesToProcess=1)=0

virtual bool	doNoteOn (MIDINoteEvent &noteEvent)=0

virtual bool	doNoteOff (MIDINoteEvent &noteEvent)=0

virtual bool	initialize (const char *_dllDirectory)

virtual int32_t	getState ()

virtual bool	shutdown ()

virtual bool	startGlideModulation (GlideInfo &glideInfo)
	starts the built-in glide modulator More...

std::shared_ptr< Modulators >	getModulationInput ()

std::shared_ptr< Modulators >	getModulationOutput ()

std::shared_ptr< AudioBuffer >	getAudioBuffers ()

void	setUnisonMode (double _unisonDetuneCents, double _unisonStarPhase)

void	setFMBuffer (std::shared_ptr< AudioBuffer > pmBuffer)

void	clearFMBuffer ()

virtual bool	getModuleStrings (std::vector< std::string > &moduleStrings, std::string ignoreStr="")
	Gets a std::vector of Module Strings. More...

virtual bool	getModuleStrings (uint32_t coreIndex, std::vector< std::string > &moduleStrings, std::string ignoreStr)
	Gets a std::vector of Module Strings from a particular core. More...

virtual bool	getAllModuleStrings (std::vector< std::string > &moduleStrings, std::string ignoreStr)
	Gets a std::vector of all Module Strings concatenated from all cores in succession. More...

virtual bool	getModKnobStrings (std::vector< std::string > &modKnobStrings)
	Gets a std::vector of Mod Knob label strings for the selected core. More...

virtual bool	getModKnobStrings (uint32_t coreIndex, std::vector< std::string > &modKnobStrings)
	Gets a std::vector of Mod Knob label strings for a given core; if the core cannot be found returs the mod knob labels of the module itself. More...

virtual bool	getModuleCoreStrings (std::vector< std::string > &moduleCoreStrings)
	Gets a std::vector of the names of the four cores in this module. More...

virtual bool	addModuleCore (std::shared_ptr< ModuleCore > core)
	adds a module core to the module's set of four More...

virtual uint32_t	getSelectedCoreIndex ()
	get the index of the selected core More...

virtual bool	selectModuleCore (uint32_t index)
	Select a core. More...

virtual bool	selectDefaultModuleCore ()
	Select the default core, which is always the first in the list. More...

virtual void	packCores ()
	packs the cores into non-null ordering

virtual bool	clearModuleCores ()
	Clears out the module core pointer list. More...

virtual void	setStandAloneMode (bool b)
	Sets the stand-alone mode flag on all cores. More...

Protected Attributes
std::shared_ptr< Modulators >	modulationInput = std::make_shared<Modulators>()

std::shared_ptr< Modulators >	modulationOutput = std::make_shared<Modulators>()

std::shared_ptr< MidiInputData >	midiInputData = nullptr

std::shared_ptr< AudioBuffer >	audioBuffers = nullptr

std::unique_ptr< GlideModulator >	glideModulator

std::shared_ptr< AudioBuffer >	fmBuffer = nullptr

std::shared_ptr< ModuleCore >	moduleCores [NUM_MODULE_CORES]

std::shared_ptr< ModuleCore >	selectedCore = nullptr

ModuleCoreData	moduleData
	modulestrings (16) and mod knob labels (4) More...

double	unisonDetuneCents = 0.0

double	unisonStartPhase = 0.0

bool	standAloneMode = false

CoreProcData	coreProcessData

std::string	dllDirectory

Detailed Description

Abstract base class that encapsulates functionality of a module; used with the Module-Core paradigm.

almost all Modules are generalized, and own up to four (4) module core objects that actually implement the specialized behavior
objects derived from SynthModule ARE NOT OBLIGED to follow the module-core paradigm, nor are they required to hold, initialize, and maintain the four cores; instead they may implemement the module functionality directly
the WSOScillator is an example of a SynthModule that does not use any ModuleCore objects
the five main abstract functions will all map to the same named functions on the ModuleCore objects, if the SynthModule chooses to use the Module-Core paradigm
for most objects, this is a very simple implementation that is mainly responsible for initializing and maintainig its set of four ModuleCores and these are very thin objects

Author: Will Pirkle http://www.willpirkle.com

Remarks: This object is included and described in further detail in Designing Software Synthesizer Plugins in C++ 2nd Ed. by Will Pirkle

Version: Revision : 1.0

Date: Date : 2021 / 04 / 26

Constructor & Destructor Documentation

◆ SynthModule()

SynthLab::SynthModule::SynthModule ( std::shared_ptr< MidiInputData > _midiInputData )

Constructs a SynthModule.

creats the MIDI input data if not present, for stand-alone operation

Parameters

_midiInputData MIDI input data interface; if nullptr, then object synthesizes its own

Member Function Documentation

◆ addModuleCore()

bool SynthLab::SynthModule::addModuleCore ( std::shared_ptr< ModuleCore > core )

virtual

adds a module core to the module's set of four

for adding cores to a module, either statically or dynamically

Returns: true if sucessful

◆ clearModuleCores()

bool SynthLab::SynthModule::clearModuleCores ( )

virtual

Clears out the module core pointer list.

does not delete or destroy the core

Returns: true if sucessful

◆ getAllModuleStrings()

bool SynthLab::SynthModule::getAllModuleStrings	(	std::vector< std::string > &	moduleStrings,
		std::string	ignoreStr
	)

virtual

Gets a std::vector of all Module Strings concatenated from all cores in succession.

used to generate the waveform GUI lists for the WaveSequencer project
merges all core module strings together

Parameters

moduleStrings	vector pf strings retured via pass-by-reference
ignoreStr	a string to ignore when filling the vector (e.g. "empty string")

Returns: true if strings were found, false otherwise

◆ getAudioBuffers()

std::shared_ptr<AudioBuffer> SynthLab::SynthModule::getAudioBuffers ( )

inline

access to audio buffers (I/O)

◆ getModKnobStrings() [1/2]

bool SynthLab::SynthModule::getModKnobStrings ( std::vector< std::string > & modKnobStrings )

virtual

Gets a std::vector of Mod Knob label strings for the selected core.

Each Module or Core has up to 4 Mod Knob label strings strings to expose to the user
Used in impementations that have dynamically loadable string labels for mod knobs

Parameters

modKnobStrings vector pf strings retured via pass-by-reference

Returns: true if strings were found, false otherwise

◆ getModKnobStrings() [2/2]

bool SynthLab::SynthModule::getModKnobStrings	(	uint32_t	coreIndex,
		std::vector< std::string > &	modKnobStrings
	)

virtual

Gets a std::vector of Mod Knob label strings for a given core; if the core cannot be found returs the mod knob labels of the module itself.

Each Module or Core has up to 4 Mod Knob label strings strings to expose to the user
Used in impementations that have dynamically loadable string labels for mod knobs

Parameters

modKnobStrings vector pf strings retured via pass-by-reference

Returns: true if strings were found, false otherwise

◆ getModulationInput()

std::shared_ptr<Modulators> SynthLab::SynthModule::getModulationInput ( )

inline

access to modulators

◆ getModuleCoreStrings()

bool SynthLab::SynthModule::getModuleCoreStrings ( std::vector< std::string > & moduleCoreStrings )

virtual

Gets a std::vector of the names of the four cores in this module.

Used in impementations that have dynamically loadable GUI controls for listing the cores

Parameters

moduleCoreStrings vector pf strings retured via pass-by-reference

Returns: true if strings were found, false otherwise

◆ getModuleStrings() [1/2]

bool SynthLab::SynthModule::getModuleStrings	(	std::vector< std::string > &	moduleStrings,
		std::string	ignoreStr = `""`
	)

virtual

Gets a std::vector of Module Strings.

functions for dealing with the module cores; SynthLab only; these may be ignored in many stand-alone implementations

Each Module has up to 16 module strings to expose to the user
Used in impementations that have dynamically loadable string controls on the GUI

Parameters

moduleStrings	vector pf strings retured via pass-by-reference
ignoreStr	a string to ignore when filling the vector (e.g. "empty string")

Returns: true if strings were found, false otherwise

◆ getModuleStrings() [2/2]

bool SynthLab::SynthModule::getModuleStrings	(	uint32_t	coreIndex,
		std::vector< std::string > &	moduleStrings,
		std::string	ignoreStr
	)

virtual

Gets a std::vector of Module Strings from a particular core.

Each Module or Core has up to 16 module strings to expose to the user
Used in impementations that have dynamically loadable string controls on the GUI

Parameters

coreIndex	index of core to query for its strings
moduleStrings	vector pf strings retured via pass-by-reference
ignoreStr	a string to ignore when filling the vector (e.g. "empty string")

Returns: true if strings were found, false otherwise

◆ getSelectedCoreIndex()

uint32_t SynthLab::SynthModule::getSelectedCoreIndex ( )

virtual

get the index of the selected core

Returns: index of core

◆ getState()

virtual int32_t SynthLab::SynthModule::getState ( )

inlinevirtual

EG only

Reimplemented in SynthLab::DXEG, and SynthLab::EnvelopeGenerator.

◆ initialize()

virtual bool SynthLab::SynthModule::initialize ( const char * _dllDirectory )

inlinevirtual

for knowing the path to the DLL itself for loading PCM samples or other resources

◆ reset()

virtual bool SynthLab::SynthModule::reset ( double _sampleRate )

pure virtual

abstract base class functions: see synth book for details

Implemented in SynthLab::WaveSequencer, SynthLab::WTOscillator, SynthLab::PCMOscillator, SynthLab::FMOperator, SynthLab::WSOscillator, SynthLab::SynthFilter, SynthLab::Oscillator, SynthLab::Oscillator, SynthLab::SynthLFO, SynthLab::VAOscillator, SynthLab::KSOscillator, SynthLab::SynthModuleWithCores, SynthLab::DXEG, SynthLab::EnvelopeGenerator, SynthLab::AudioDelay, SynthLab::NoiseOscillator, SynthLab::DCA, SynthLab::SynthModuleNoCores, and SynthLab::FilterModule.

◆ selectDefaultModuleCore()

bool SynthLab::SynthModule::selectDefaultModuleCore ( )

virtual

Select the default core, which is always the first in the list.

Returns: true if found a core to select

◆ selectModuleCore()

bool SynthLab::SynthModule::selectModuleCore ( uint32_t index )

virtual

Select a core.

Parameters

index index of core to select

Returns: true if found a core to select

◆ setFMBuffer()

void SynthLab::SynthModule::setFMBuffer ( std::shared_ptr< AudioBuffer > pmBuffer )

inline

for DX synths only

◆ setStandAloneMode()

void SynthLab::SynthModule::setStandAloneMode ( bool alone )

virtual

Sets the stand-alone mode flag on all cores.

Parameters

alone true if stand-alone mode, false otherwise

◆ setUnisonMode()

void SynthLab::SynthModule::setUnisonMode	(	double	_unisonDetuneCents,
		double	_unisonStarPhase
	)

inline

— for unison mode only

◆ startGlideModulation()

bool SynthLab::SynthModule::startGlideModulation ( GlideInfo & glideInfo )

virtual

starts the built-in glide modulator

for starting glide modulation on underlying objects

Returns: true if sucessful

Reimplemented in SynthLab::WSOscillator.

Member Data Documentation

◆ audioBuffers

std::shared_ptr<AudioBuffer> SynthLab::SynthModule::audioBuffers = nullptr

protected

audio buffers for pitched oscillator and filters and DCA

◆ coreProcessData

CoreProcData SynthLab::SynthModule::coreProcessData

protected

helpers for dealing with Cores

◆ fmBuffer

std::shared_ptr<AudioBuffer> SynthLab::SynthModule::fmBuffer = nullptr

protected

audio buffers for pitched oscillator and filters and DCA

◆ glideModulator

std::unique_ptr<GlideModulator> SynthLab::SynthModule::glideModulator

protected

glide modulator

◆ midiInputData

std::shared_ptr<MidiInputData> SynthLab::SynthModule::midiInputData = nullptr

protected

MIDI Data Interface

◆ modulationInput

std::shared_ptr<Modulators> SynthLab::SynthModule::modulationInput = std::make_shared<Modulators>()

protected

modulation input bus

◆ modulationOutput

std::shared_ptr<Modulators> SynthLab::SynthModule::modulationOutput = std::make_shared<Modulators>()

protected

modulation outputs bus

◆ moduleCores

std::shared_ptr<ModuleCore> SynthLab::SynthModule::moduleCores[NUM_MODULE_CORES]

protected

for core-specific stuff

◆ moduleData

ModuleCoreData SynthLab::SynthModule::moduleData

protected

modulestrings (16) and mod knob labels (4)

for modules without cores

The documentation for this class was generated from the following files:

C:/RackAFX Projects/SynthLab_SDK/source/synthbase.h
C:/RackAFX Projects/SynthLab_SDK/source/synthbase.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SynthModule()

Member Function Documentation

◆ addModuleCore()

◆ clearModuleCores()

◆ getAllModuleStrings()

◆ getAudioBuffers()

◆ getModKnobStrings() [1/2]

◆ getModKnobStrings() [2/2]

◆ getModulationInput()

◆ getModuleCoreStrings()

◆ getModuleStrings() [1/2]

◆ getModuleStrings() [2/2]

◆ getSelectedCoreIndex()

◆ getState()

◆ initialize()

◆ reset()

◆ selectDefaultModuleCore()

◆ selectModuleCore()

◆ setFMBuffer()

◆ setStandAloneMode()

◆ setUnisonMode()

◆ startGlideModulation()

Member Data Documentation

◆ audioBuffers

◆ coreProcessData

◆ fmBuffer

◆ glideModulator

◆ midiInputData

◆ modulationInput

◆ modulationOutput

◆ moduleCores

◆ moduleData
